1. Introduction

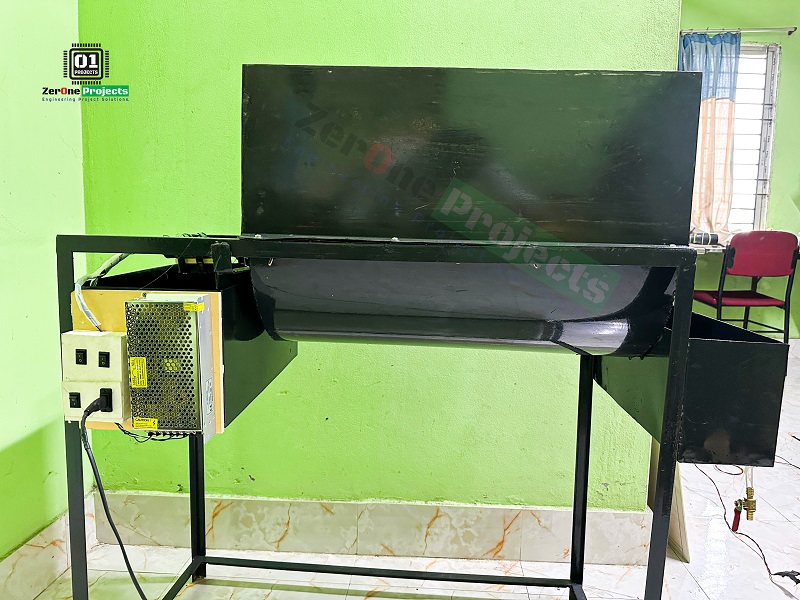

The Automatic Water Bottle Cleaning System is designed to clean reusable water bottles with minimal manual effort. The system uses a mechanical cleaning mechanism to remove dirt and residue from the inner surfaces of bottles. It aims to improve cleaning convenience, maintain hygiene, and provide a practical solution for households, offices, and other everyday applications.

2. Objectives

• Automate the bottle-cleaning process.

• Remove dirt and residue from bottle interiors.

• Reduce manual effort and cleaning time.

• Improve bottle hygiene through effective cleaning.

• Develop a simple and reusable mechanical system.

• Minimize water wastage during cleaning.

3. Methodology

• Place the bottle securely in the cleaning holder.

• Position the cleaning brush inside the bottle.

• Operate the mechanical drive mechanism.

• Rotate the brush to clean the inner surfaces.

• Apply water to loosen and remove dirt.

• Rinse the bottle and remove it after cleaning.

4. Instrument List

• DC Motor or Geared Motor

• Cleaning Brush

• Motor Mounting Frame

• Bottle Holder

• Water Pump

• Water Storage Tank

• Water Pipe and Nozzle

• Switch

• Battery

• Mechanical Support Structure

5. Working Principle

• The bottle is fixed securely in the holder.

• The motor drives the cleaning brush inside the bottle.

• The rotating brush scrubs the inner surface to remove dirt and residue.

• Water is supplied through a nozzle to assist the cleaning process.

• The bottle is rinsed to remove loosened particles.

• After cleaning, the bottle is removed for drying and reuse.

6. Advantages

• Reduces manual cleaning effort.

• Saves time during bottle cleaning.

• Improves cleaning convenience.

• Supports reusable bottle hygiene.

• Offers a compact mechanical design.

• Can be adapted for different bottle sizes.

7. Conclusion

The Automatic Water Bottle Cleaning System provides a practical approach to cleaning reusable bottles through a mechanical brushing mechanism. It can reduce manual effort and improve cleaning convenience in daily use. Further improvements in brush design, water control, and bottle compatibility can enhance cleaning performance while minimizing water consumption.
